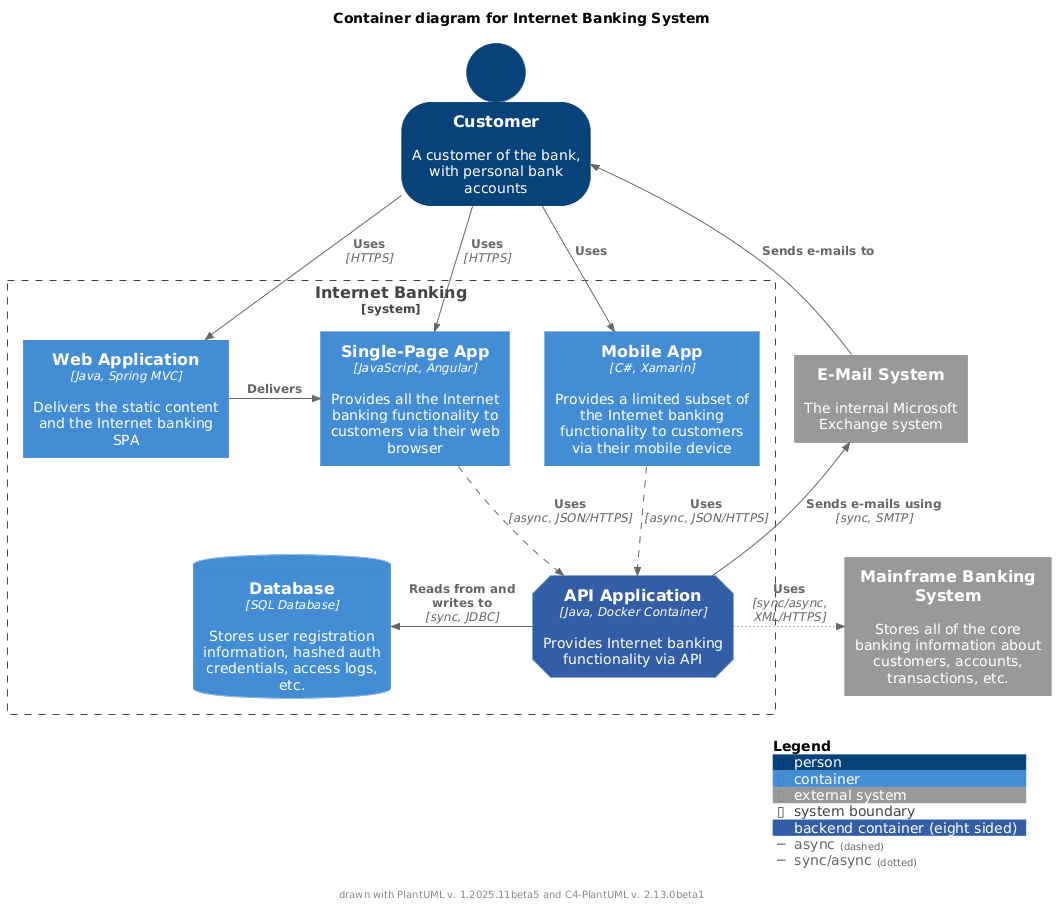

Container diagram for Internet Banking System

C4-PlantUML combines the benefits of PlantUML and the C4 model for providing a simple way of describing and communicating software architectures – especially during up-front design sessions – with an intuitive language using open source and platform independent tools.

C4-PlantUML includes macros, stereotypes, and other goodies (like VSCode Snippets) for creating C4 diagrams with PlantUML.

Getting Started

Including the C4-PlantUML library

At the top of your C4 PlantUML .puml file, you need to include the C4_Context.puml, C4_Container.puml or C4_Component.puml file found in the root of this repo.

To be independent of any Internet connectivity, you can download the files found in the root and make use of them by supplying the command line argument -DRELATIVE_INCLUDE="." to PlantUML:

java -jar plantuml.jar -DRELATIVE_INCLUDE="."  ...

For Visual Studio Code, add the following to your settings.json:

"plantuml.jarArgs": [
  "-DRELATIVE_INCLUDE=."
]

If you want to use the always up-to-date version of the C4-PlantUML library in this repo (which obviously requires an Internet connection every time you render a document), use the following:

!include  https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

If you don’t need the up-to-date version, PlantUML includes the last released C4_... files as standard library C4 (no additional files or Internet is required). You can use it with following:

!include <C4/C4_Container>

Now let’s create a C4 Container diagram

(If you don’t want run PlantUML locally you can use e.g. the PlantUML Web Server too.)

After you have included C4_Container.puml you can use the defined macro definitions for the C4 elements: Person, Person_Ext, System, System_Ext, Container, Relationship, Boundary, and System_Boundary

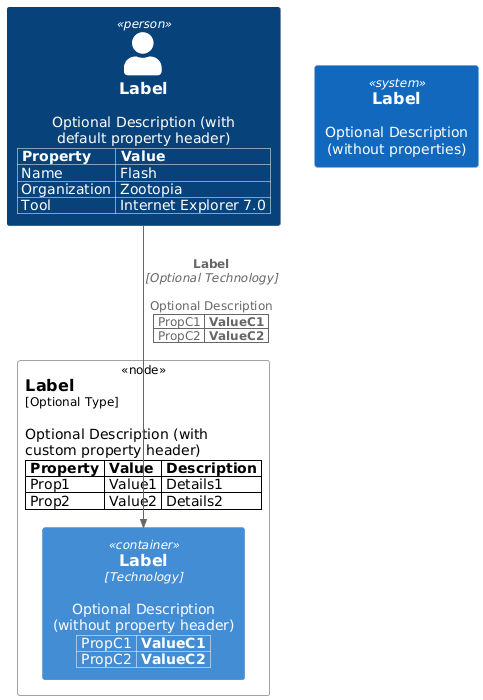

@startuml C4_Elements
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

Person(personAlias, "Label", "Optional Description")
Container(containerAlias, "Label", "Technology", "Optional Description")
System(systemAlias, "Label", "Optional Description")

Rel(personAlias, containerAlias, "Label", "Optional Technology")
@enduml

test

In addition to this, it is also possible to define a system or component boundary.

Take a look at the following sample of a C4 Container Diagram:

@startuml Basic Sample
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

Person(admin, "Administrator")
System_Boundary(c1, "Sample System") {
    Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", "Allows users to compare multiple Twitter timelines")
}
System(twitter, "Twitter")

Rel(admin, web_app, "Uses", "HTTPS")
Rel(web_app, twitter, "Gets tweets from", "HTTPS")
@enduml

Basic Sample

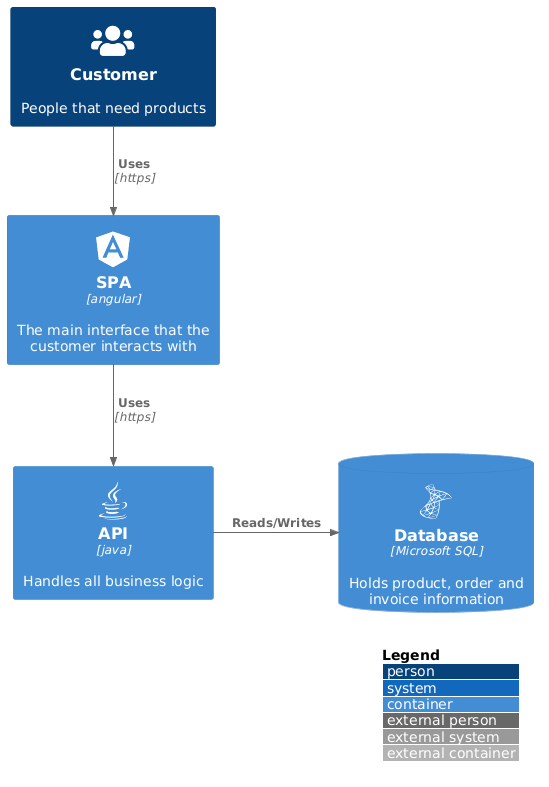

Entities can also be decorated with icons/sprites using the $sprite parameter, for example:

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

!define DEVICONS https://raw.githubusercontent.com/tupadr3/plantuml-icon-font-sprites/master/devicons
!define FONTAWESOME https://raw.githubusercontent.com/tupadr3/plantuml-icon-font-sprites/master/font-awesome-5
!include DEVICONS/angular.puml
!include DEVICONS/java.puml
!include DEVICONS/msql_server.puml
!include FONTAWESOME/users.puml

LAYOUT_WITH_LEGEND()

Person(user, "Customer", "People that need products", $sprite="users")
Container(spa, "SPA", "angular", "The main interface that the customer interacts with", $sprite="angular")
Container(api, "API", "java", "Handles all business logic", $sprite="java")
ContainerDb(db, "Database", "Microsoft SQL", "Holds product, order and invoice information", $sprite="msql_server")

Rel(user, spa, "Uses", "https")
Rel(spa, api, "Uses", "https")
Rel_R(api, db, "Reads/Writes")
@enduml

Sprites/Icons

Similar to icons/sprites is it possible to add links to all elements and relationships:

@startuml Basic Sample
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

Person(admin, "Administrator", $sprite="person2", $link="https://github.com/plantuml-stdlib/C4-PlantUML/blob/master/LayoutOptions.md#hide_person_sprite-or-show_person_spritesprite")
System_Boundary(c1, "Sample System", $link="https://github.com/plantuml-stdlib/C4-PlantUML") {
    Container(web_app, "Web Application", "C#, ASP.NET Core 2.1 MVC", $descr="Allows users to compare multiple Twitter timelines", $link="https://github.com/plantuml-stdlib/C4-PlantUML/blob/master/LayoutOptions.md")
}
System(twitter, "Twitter", $link="https://github.com/plantuml-stdlib/C4-PlantUML")

Rel(admin, web_app, "Uses", "HTTPS", $link="https://plantuml.com/link")
Rel(web_app, twitter, "Gets tweets from", "HTTPS", $link="https://plantuml.com/link")
@enduml

png itself supports no links, therefore the following image is generated as svg image. Github does not support svg links in README.md. If you click on the image a new window is opened and there you can use the links.

Click on the image that the links are working

Elements and relationships can be decorated with tags and explained via a calculated legend, for example:

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

AddElementTag("v1.0", $borderColor="#d73027")
AddElementTag("v1.1", $fontColor="#d73027")
AddElementTag("backup", $fontColor="orange")

AddRelTag("backup", $textColor="orange", $lineColor="orange", $lineStyle = DashedLine())

Person(user, "Customer", "People that need products")
Person(admin, "Administrator", "People that administrates the products via the new v1.1 components", $tags="v1.1")
Container(spa, "SPA", "angular", "The main interface that the customer interacts with via v1.0", $tags="v1.0")
Container(spaAdmin, "Admin SPA", "angular", "The administrator interface that the customer interacts with via new v1.1", $tags="v1.1")
Container(api, "API", "java", "Handles all business logic (incl. new v1.1 extensions)", $tags="v1.0+v1.1")
ContainerDb(db, "Database", "Microsoft SQL", "Holds product, order and invoice information")
Container(archive, "Archive", "Audit logging", "Stores 5 years", $tags="backup")

Rel(user, spa, "Uses", "https")
Rel(spa, api, "Uses", "https")
Rel_R(api, db, "Reads/Writes")
Rel(admin, spaAdmin, "Uses", "https")
Rel(spaAdmin, api, "Uses", "https")
Rel_L(api, archive, "Writes", "messages", $tags="backup")

SHOW_LEGEND()
@enduml

tags

Supported Diagram Types

System Context & System Landscape diagrams

Container diagram

Component diagram

Dynamic diagram

Deployment diagram

(C4 styled) Sequence diagram

C4-PlantUML does not offer a full sequence diagram support, but existing elements and relationships can be reused as participants and calls in the corresponding styles.

!!! Contrary to all other diagrams, please define boundaries without { and } and mark a boundary end with Boundary_End() !!!

Samples

Take a look at each of the C4 Model Diagram Samples.

Relationship Types

You can force the direction of a relationship by using:

In following sample a person uses different systems, and a group of persons which have bidirectional relationships

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
HIDE_STEREOTYPE()

Person(a, "A")
Person(b, "B")
Person(c, "C")
Person(d, "D")
Person(e, "E")

BiRel_U(a, b, "talk with")
BiRel_R(a, c, "talk with")
BiRel_D(a, d, "talk with")
BiRel_L(a, e, "talk with")

Person(x, "X")
System(s1, "S1")
System(s2, "S2")
System(s3, "S3")
System(s4, "S4")

Rel_U(x, s1, "uses")
Rel_R(x, s2, "uses")
Rel_D(x, s3, "uses")
Rel_L(x, s4, "uses")
@enduml

(unidirectional) relationship versus bidirectional relationship

Layout (arrange) elements (without relationships)

In rare cases, you can force the layout of elements which have no relationships by using:

In following sample a person uses different systems, and a group of persons which have no relationships

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
HIDE_STEREOTYPE()

Person(a, "A")
Person(b, "B")
Person(c, "C")
Person(d, "D")
Person(e, "E")

Lay_U(a, b)
Lay_R(a, c)
Lay_D(a, d)
Lay_L(a, e)

Person(x, "X")
System(s1, "S1")
System(s2, "S2")
System(s3, "S3")
System(s4, "S4")

Rel_U(x, s1, "uses")
Rel_R(x, s2, "uses")
Rel_D(x, s3, "uses")
Rel_L(x, s4, "uses")
@enduml

Relationship versus Layout

(In combination with SHOW_FLOATING_LEGEND()) a greater distance between an element and the e.g. floating legend could be required that all e.g. corners of the drawing area can be reached.

In following sample the floating legend should be in the left bottom corner of the drawing are. (The normal SHOW_LEGEND() call requires no extra Lay_Distance() call and the legend is automatically drawn below the diagram on the right side)

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

!define DEVICONS https://raw.githubusercontent.com/tupadr3/plantuml-icon-font-sprites/master/devicons
!define FONTAWESOME https://raw.githubusercontent.com/tupadr3/plantuml-icon-font-sprites/master/font-awesome-5
!include DEVICONS/angular.puml
!include DEVICONS/java.puml
!include DEVICONS/msql_server.puml
!include FONTAWESOME/users.puml

Person(user, "Customer", "People that need products", $sprite="users")
Container(spa, "SPA", "angular", "The main interface that the customer interacts with", $sprite="angular")
Container(api, "API", "java", "Handles all business logic", $sprite="java")
ContainerDb(db, "Database", "Microsoft SQL", "Holds product, order and invoice information", $sprite="msql_server")

Rel(user, spa, "Uses")
Rel(spa, api, "Uses")
Rel_R(api, db, "Reads/Writes")

SHOW_FLOATING_LEGEND()
Lay_Distance(LEGEND(), db, 1)
@enduml

db below legend, 1 unit distance

Global Layout Options

C4-PlantUML also comes with some layout options to make it easy and reusable to create nice and useful diagrams:

C4-PlantUML also comes with some person sprite/portrait options:

Sprites and other images

C4-PlantUML offers predefined person and robot sprites which can be directly used:

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Component.puml

Person(pB, "Sam", $sprite="person2")
Person_Ext(pA, "Bob", $sprite="person")

System_Ext(robB, "Robot A", $sprite="robot2")
System_Ext(robA, "Robot B", $sprite="robot")

SHOW_LEGEND()
@enduml

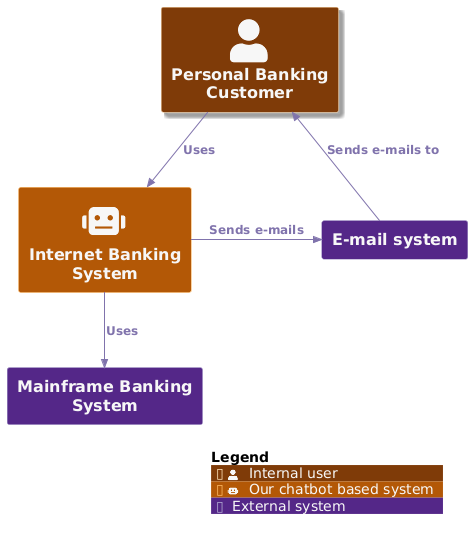

Predefined person and robot sprites

Additional $sprite (images) can be defined with following PlantUML supported options:

Size of the displayed images can be changed with ,scale={factor}. Color of the displayed images can be changed with ,color={color}.

(If sprites are defined via $tags then the calculated legend is updated too)

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

'stdlib users.puml defines sprite "users"
!include <office/users/users.puml>


AddRelTag("plantuml", $textColor="$ARROW_FONT_COLOR", $lineColor="$ARROW_COLOR", $sprite="img:https://plantuml.com/logo3.png{scale=0.3}", $legendSprite="img:https://plantuml.com/logo3.png{scale=0.1}", $legendText="console triggered")

Person(user, "user group displayed with a sprite", $sprite="users")


Container(container, "Container with scaled and colored OpenIconic", $sprite="&folder,scale=5.0,color=gray")

System(system, "System with an image", $sprite="img:https://plantuml.com/logo3.png")

Rel(user, system, "Rel with image (via tags)", $tags="plantuml")
Rel(user, container, "Rel with OpenIconinc", $sprite="&folder")

SHOW_LEGEND()
@enduml

Sprite, image and OpenIconic

Relationship specific sprites are typically smaller and therefore following options are possible:

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Context.puml

Person(user, "User")
Person(user1, "User 1")
Person(user2, "User 2")
Person(user3, "User 3")

System(system, "System")

' normal sprites are too big
Rel_L(user, user2, "informs", "courier", "normal sprites are too big", $sprite="person2")

' scaled sprites are ok
Rel_R(user, user3, "informs", "courier", "scaled sprites are OK", $sprite="person2,scale=0.5")

' combine sprite and scale to a new sprite
!$combinedSprite="person2,scale=0.5"
Rel_R(user, user3, "informs", "courier", "combined sprites are OK", $sprite=$combinedSprite)

' special smaller sprites can be used
sprite $triangle {
    00000000000
    00000F00000
    0000FBF0000
    0000FBF0000
    000F999F000
    000F999F000
    00F66666F00
    00F66666F00
    0F3333333F0
    0F3333333F0
    0FFFFFFFFF0
    00000000000
}
Rel_R(user1, system, "orders", "http", "small sprites, like the small triangle", $sprite="triangle")

' if sprite starts with &, sprite defines a OpenIconic, details see https://useiconic.com/open/
Rel_D(user, user1, "requests", "async message", "if sprite starts with &, it defines a OpenIconic like &envelope-closed", $sprite = "&envelope-closed")
@enduml

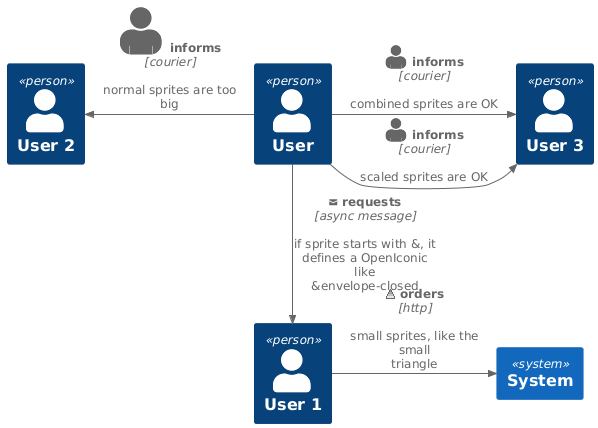

Relationship with sprite or OpenIconic

Custom tags/stereotypes support and skinparam updates

Additional tags/stereotypes can be added to the existing element stereotypes (component, …) and highlight,… specific aspects:

Each element can be extended with one or multiple custom tags via the keyword argument $tags="...", like Container(spaAdmin, "Admin SPA", $tags="v1.1"). Multiple tags can be combined with +, like Container(api, "API", $tags="v1.0+v1.1").

Element specific tag definitions

Sometimes an added element tag is element specific and all element specific colors should be used, e.g. a specific user role should be defined as element tag with the specific colors ...PERSON_... like

AddElementTag("admin", $fontColor=$PERSON_FONT_COLOR, $bgColor=$PERSON_BG_COLOR, $borderColor=$PERSON_BORDER_COLOR, $sprite="osa_user_audit", $legendText="administration user")

Therefore element Add…Tag() shortcuts are added which use the specific colors as default values and the call can be simplified like

AddPersonTag("admin", $sprite="osa_user_audit", $legendText="administration user")

Following calls introduces new element tags with element specific default colors:

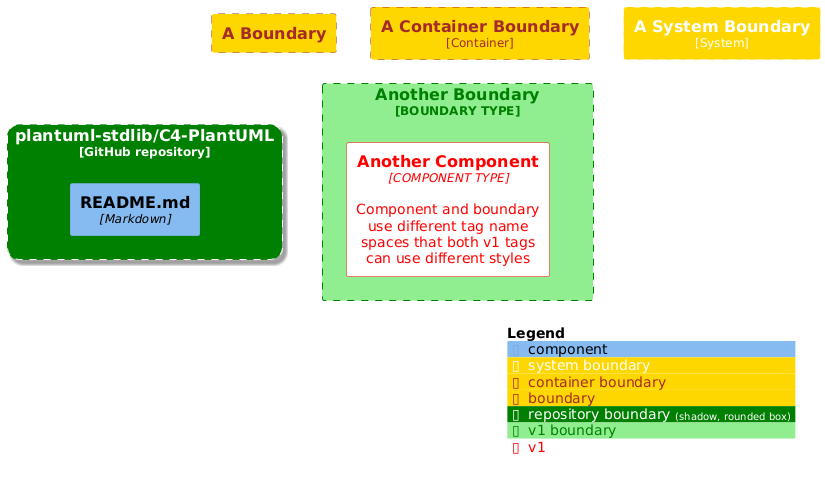

Boundary specific tag definitions

Like the element specific tag definitions exist boundary specific calls with their default colors and type:

Define a new legend title

All the above described Update....(..., ?legendText, ...) calls can define a new legend text. Only the legend title cannot be changed. Therefore, the following call is added to allow it to be changed as well:

Comments

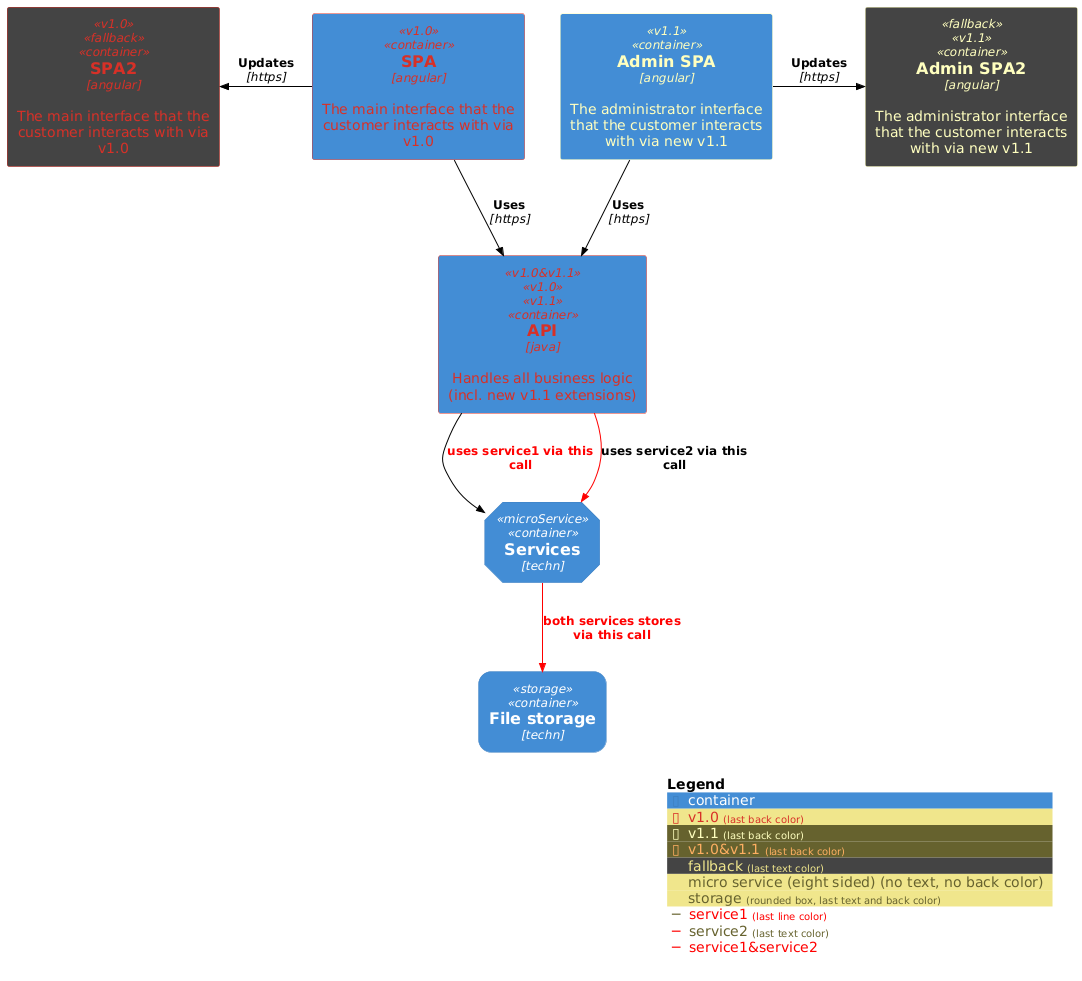

Sample with different tag combinations

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

UpdateElementStyle(person, $fontColor="green")
AddElementTag("v1.0", $fontColor="#d73027", $borderColor="#d73027")
AddElementTag("v1.1", $fontColor="#ffffbf", $borderColor="#ffffbf")
AddElementTag("v1.0&v1.1", $fontColor="#fdae61", $borderColor="#fdae61")
AddElementTag("fallback", $bgColor="#444444")

' If spaces are requested in the legend, legend text with space has to be defined (incl. all other additional details)
AddElementTag("microService", $shape=EightSidedShape(), $legendText="micro service (eight sided) (no text, no back color)")
' If no special tag names should be displayed in legend, no explicit legend text definition is required (all additional details are automatically calculated)
AddElementTag("storage", $shape=RoundedBoxShape())

UpdateRelStyle(black, black)
AddRelTag("service1", $textColor="red")
AddRelTag("service2", $lineColor="red")
AddRelTag("service1&service2", $textColor="red", $lineColor="red")

Container(spa, "SPA", "angular", "The main interface that the customer interacts with via v1.0", $tags="v1.0")
Container(spaAdmin, "Admin SPA", "angular", "The administrator interface that the customer interacts with via new v1.1", $tags="v1.1")
Container(api, "API", "java", "Handles all business logic (incl. new v1.1 extensions)", $tags="v1.0&v1.1+v1.0+v1.1")
Container(spa2, "SPA2", "angular", "The main interface that the customer interacts with via v1.0", $tags="v1.0+fallback")
Container(spaAdmin2, "Admin SPA2", "angular", "The administrator interface that the customer interacts with via new v1.1", $tags="fallback+v1.1")

Container(services, "Services", "techn", $tags="microService")
Container(fileStorage, "File storage", "techn", $tags="storage")

Rel(spa, api, "Uses", "https")
Rel(spaAdmin, api, "Uses", "https")
Rel_L(spa, spa2, "Updates", "https")
Rel_R(spaAdmin, spaAdmin2, "Updates", "https")

Rel_D(api, services, "uses service1 via this call", $tags="service1")
Rel_D(api, services, "uses service2 via this call", $tags="service2")
Rel_D(services, fileStorage, "both services stores via this call", $tags="service1&service2+service1+service2")

SHOW_LEGEND(false)
@enduml

merged tags

Sample with tag dependent sprites and custom legend text

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

!define osaPuml https://raw.githubusercontent.com/Crashedmind/PlantUML-opensecurityarchitecture2-icons/master
!include osaPuml/Common.puml
!include osaPuml/User/all.puml

!include <office/Servers/database_server>
!include <office/Servers/file_server>
!include <office/Servers/application_server>
!include <office/Concepts/service_application>
!include <office/Concepts/firewall>

AddExternalPersonTag("anonymous_ext", $sprite="osa_user_black_hat", $legendText="anonymous user")
AddPersonTag("customer", $sprite="osa_user_large_group", $legendText="aggregated user")
AddPersonTag("admin", $sprite="osa_user_audit,color=red", $legendSprite="osa_user_audit,scale=0.25,color=red", $legendText="administration user")

AddContainerTag("webApp", $sprite="application_server", $legendText="web app container")
AddContainerTag("db", $sprite="database_server", $legendText="database container")
AddContainerTag("files", $sprite="file_server", $legendText="file server container")
AddContainerTag("conApp", $sprite="service_application", $legendText="console app container")

AddRelTag("firewall", $textColor="$ARROW_FONT_COLOR", $lineColor="$ARROW_COLOR", $sprite="firewall,scale=0.3,color=red", $legendText="firewall")

Person_Ext(anonymous_user, "Bob", $tags="anonymous_ext")
Person(aggregated_user, "Sam, Ivone", $tags="customer")
Person(administration_user, "Bernd", $tags="admin")

System_Boundary(c1, "techtribes.js"){
    Container(web_app, "Web Application", "Java, Spring MVC, Tomcat 7.x", $tags="webApp")
    ContainerDb(rel_db, "Relational Database", "MySQL 5.5.x", $tags="db")
    Container(filesystem, "File System", "FAT32", $tags="files")
    ContainerDb(nosql, "NoSQL Data Store", "MongoDB 2.2.x", $tags="db")
    Container(updater, "Updater", "Java 7 Console App", $tags="conApp")
}

Rel(anonymous_user, web_app, "Uses", "HTTPS", $tags="firewall")
Rel(aggregated_user, web_app, "Uses", "HTTPS", $tags="firewall")
Rel(administration_user, web_app, "Uses", "HTTPS", $tags="firewall")

Rel(web_app, rel_db, "Reads from and writes to", "SQL/JDBC, port 3306")
Rel(web_app, filesystem, "Reads from")
Rel(web_app, nosql, "Reads from", "MongoDB wire protocol, port 27017")

Rel_U(updater, rel_db, "Reads from and writes data to", "SQL/JDBC, port 3306")
Rel_U(updater, filesystem, "Writes to")
Rel_U(updater, nosql, "Reads from and writes to", "MongoDB wire protocol, port 27017")

Lay_R(rel_db, filesystem)

SHOW_LEGEND()
@enduml

tags with sprites and custom legend

Sample with different boundary tag combinations

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Component.puml

' Update the generic boundary style and the "system", "enterprise", "container" boundaries styles too
UpdateBoundaryStyle($bgColor="gold", $fontColor="brown", $borderColor="brown")
' (Re-)Updates the system boundary styles; re-set $bgColor avoids '(no back color)' in legend too
UpdateSystemBoundaryStyle($bgColor="gold", $fontColor="white", $borderColor="white")

Boundary(b, "A Boundary") {
}

Container_Boundary(cb, "A Container Boundary") {
}

System_Boundary(sb, "A System Boundary") {
}

' defines a new border style incl. new border type
AddBoundaryTag("repository", $bgColor="green", $fontColor="white", $borderColor="white", $shadowing="true", $shape = RoundedBoxShape(), $type="GitHub repository")

Boundary(c4Respository, "plantuml-stdlib/C4-PlantUML", $tags="repository") {
  Component(readMe, "README.md", "Markdown")
}

' boundary tags are internally extended with '_boundary' that it uses a different name space
' this enables different element and boundary styles for the same tag name
AddBoundaryTag("v1", $bgColor="lightgreen", $fontColor="green", $borderColor="green")
AddElementTag("v1", $bgColor="lightred", $fontColor="red", $borderColor="red")

Boundary(anotherBoundary, "Another Boundary", $type="BOUNDARY TYPE", $tags="v1") {
  Component(anotherComponent, "Another Component", $techn="COMPONENT TYPE", $tags="v1", $descr="Component and boundary use different tag name spaces that both v1 tags can use different styles")
}

Lay_R(b, cb)
Lay_R(cb, sb)

Lay_D(b, c4Respository)

Lay_R(c4Respository, anotherBoundary)

SHOW_LEGEND()
@enduml

custom border tags

Custom schema definitions (via UpdateElementStyle())

Via UpdateElementStyle() calls, it is possible to change the default colors, sprites, legend text, tags, … It automatically updates the legend too.
If the corresponding section is stored in a separate file then it can be reused as default of all diagrams.

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Context.puml

' <<<<< this section could be stored in a separate file and reused in all other diagrams too
' it defines new default colors, different default sprites and legend
!$COLOR_A_5 = "#7f3b08"
!$COLOR_A_4 = "#b35806"
!$COLOR_A_3 = "#e08214"
!$COLOR_A_2 = "#fdb863"
!$COLOR_A_1 = "#fee0b6"
!$COLOR_NEUTRAL = "#f7f7f7"
!$COLOR_B_1 = "#d8daeb"
!$COLOR_B_2 = "#b2abd2"
!$COLOR_B_3 = "#8073ac"
!$COLOR_B_4 = "#542788"
!$COLOR_B_5 = "#2d004b"
!$COLOR_REL_LINE = "#8073ac"
!$COLOR_REL_TEXT = "#8073ac"

UpdateElementStyle("person", $bgColor=$COLOR_A_5, $fontColor=$COLOR_NEUTRAL, $borderColor=$COLOR_A_1, $shadowing="true", $legendText="Internal user")
UpdateElementStyle("external_person", $bgColor=$COLOR_B_5, $fontColor=$COLOR_NEUTRAL, $borderColor=$COLOR_B_1, $legendText="External user")
UpdateElementStyle("system", $bgColor=$COLOR_A_4, $fontColor=$COLOR_NEUTRAL, $borderColor=$COLOR_A_2, $sprite="robot", $legendText="Our chatbot based system")
UpdateElementStyle("external_system", $bgColor=$COLOR_B_4, $fontColor=$COLOR_NEUTRAL, $borderColor=$COLOR_B_2, $legendText="External system")
UpdateRelStyle($lineColor=$COLOR_REL_LINE, $textColor=$COLOR_REL_TEXT)
' >>>>> end of section

Person(customer, "Personal Banking Customer")
System(banking_system, "Internet Banking System")

System_Ext(mail_system, "E-mail system")
System_Ext(mainframe, "Mainframe Banking System")

Rel(customer, banking_system, "Uses")
Rel_Back(customer, mail_system, "Sends e-mails to")
Rel_Neighbor(banking_system, mail_system, "Sends e-mails")
Rel(banking_system, mainframe, "Uses")

SHOW_LEGEND()
@enduml

custom schema

Element and Relationship properties

A model can be extended with (a table of) properties that concrete deployments or more detailed concepts can be documented:

Following sample uses all 3 different property definitions (and the aligned deployment node).

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Deployment.puml

' default header Property, Value
AddProperty("Name", "Flash")
AddProperty("Organization", "Zootopia")
AddProperty("Tool", "Internet Explorer 7.0")
Person(personAlias, "Label", "Optional Description (with default property header)")

SetPropertyHeader("Property","Value", "Description")
AddProperty("Prop1", "Value1", "Details1")
AddProperty("Prop2", "Value2", "Details2")
Deployment_Node_L(nodeAlias, "Label", "Optional Type", "Optional Description (with custom property header)") {

  WithoutPropertyHeader()
  AddProperty("PropC1", "ValueC1")
  AddProperty("PropC2", "ValueC2")
  Container(containerAlias, "Label", "Technology", "Optional Description (without property header)")
}

System(systemAlias, "Label", "Optional Description (without properties)")

' starting with v.2.5.0 relationships support properties too
WithoutPropertyHeader()
AddProperty("PropC1", "ValueC1")
AddProperty("PropC2", "ValueC2")
Rel(personAlias, containerAlias, "Label", "Optional Technology", "Optional Description")
@enduml

properties sample

Version information

C4-PlantUML offers version information like PlantUML with its %version() call.

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

' existing plantuml version as text
%version()

' new C4-Plantuml version as text
C4Version()

' new C4-Plantuml version details (incl. PlantUML version) as table
C4VersionDetails()

' version functions used in e.g. footer
footer drawn with PlantUML v. %version() and C4-PlantUML v. C4Version()
@enduml

version sample

Snippets for Visual Studio Code

Because the PlantUML support inside of Visual Studio Code is excellent with the PlantUML extension, you can also find VS Code snippets for C4-PlantUML at .vscode/C4.code-snippets.

Project level snippets are now supported in VSCode 1.28. Just include the C4.code-snippets file in the .vscode folder of your project.

It is possible to save them directly inside VS Code: Creating your own snippets.

C4-PlantUML Snippets Video

Live Templates for IntelliJ

Prerequisites

Graphviz download
PlantUML Integration

Install

  1. Download IntelliJ live template.
  2. Select File | Manage IDE Settings | Import Settings from the IntelliJ IDEA menu.
  3. Specify the path to the downloaded ZIP file: c4_live_template.zip.
  4. In the Import Settings dialog, select the Live templates checkbox and click OK.
  5. Restart IntelliJ.

Usage

C4-PlantUML Snippets Video C4-PlantUML Snippets Video

Advanced Samples

The following advanced samples are reproductions with C4-PlantUML from official C4 model samples created by Simon Brown.

The core diagram samples from c4model.com are available here.

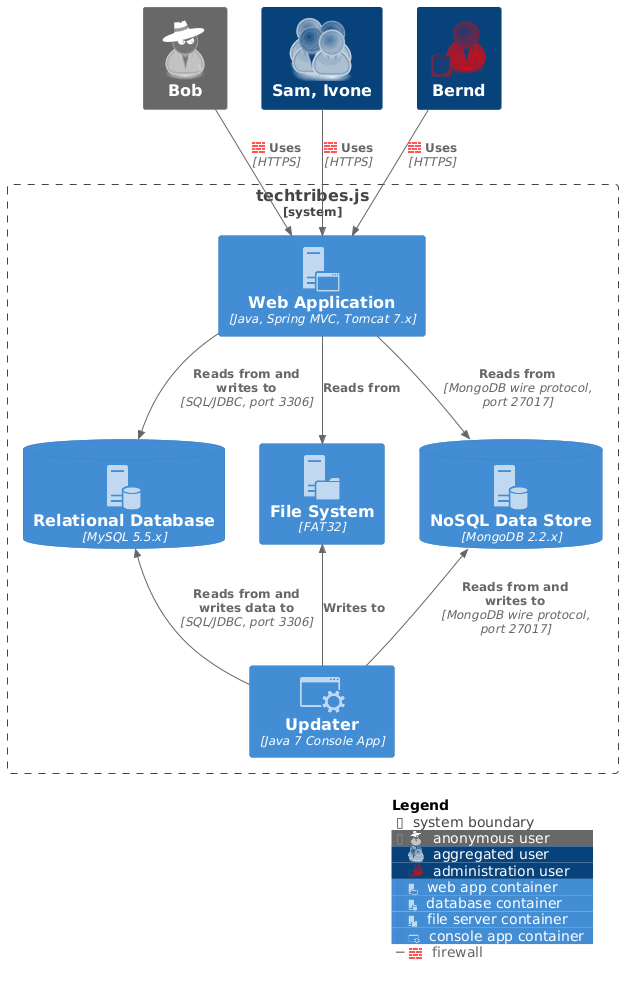

techtribes.js

Source: C4_Container Diagram Sample - techtribesjs.puml

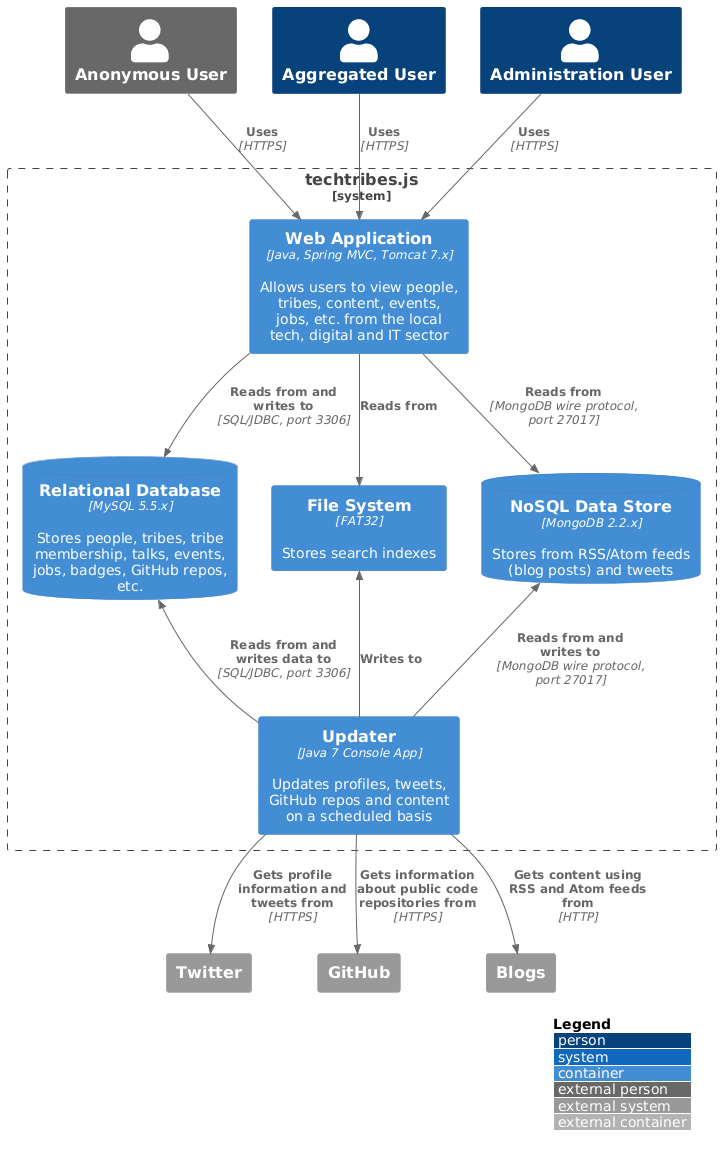

techtribesjs

Message Bus and Microservices

Source: C4_Container Diagram Sample - message bus.puml

messagebus

(C4 styled) Sequence diagram

TODO: better sample is missing …

Source: C4_Sequence Diagram Sample - complex.puml

sequence

Background

PlantUML is an open source project that allows you to create UML diagrams. Diagrams are defined using a simple and intuitive language. Images can be generated in PNG, in SVG or in LaTeX format.

PlantUML was created to allow the drawing of UML diagrams, using a simple and human readable text description. Because it does not prevent you from drawing inconsistent diagrams, it is a drawing tool and not a modeling tool. It is the most used text-based diagram drawing tool with extensive support into wikis and forums, text editors and IDEs, use by different programming languages and documentation generators.

The C4 model for software architecture is an “abstraction-first” approach to diagramming, based upon abstractions that reflect how software architects and developers think about and build software. The small set of abstractions and diagram types makes the C4 model easy to learn and use. C4 stands for context, containers, components, and code — a set of hierarchical diagrams that you can use to describe your software architecture at different zoom levels, each useful for different audiences.

The C4 model was created as a way to help software development teams describe and communicate software architecture, both during up-front design sessions and when retrospectively documenting an existing codebase.

More information can be found here:

License

This project is licensed under the MIT License - see the LICENSE file for details

This site is open source. Improve this page.
