Archimate-PlantUML

PlantUML macros and includes for creating Archimate Diagrams easily.

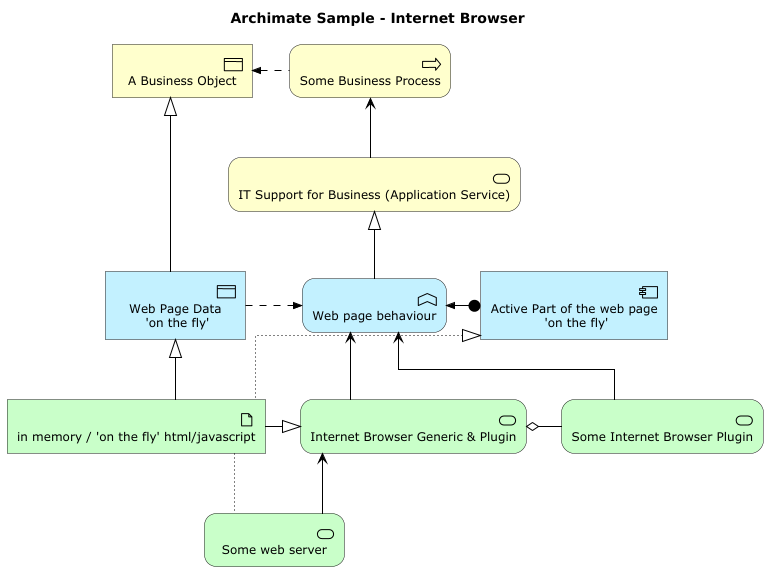

Archimate-PlantUML Sample image - Internet Browser

Background
- PlantUML
- ArchiMate
Getting Started
Usage
Example
Contributing
License
Acknowledgments

Background

PlantUML

PlantUML is an open-source project that allows you to create UML diagrams using a simple text language. It utilizes Graphviz for diagram layout, generating images in PNG, SVG, or LaTeX formats.

ArchiMate

ArchiMate is an enterprise architecture modeling language that supports the description, analysis, and visualization of architecture across business domains.

ArchiMate offers a common language for describing the construction and operation of business processes, organizational structures, information flows, IT systems, and technical infrastructure. This is just like an architectural drawing in classical building where the architecture describes the various aspects of the construction and use of a building. This insight helps the different stakeholders to design, assess, and communicate the consequences of decisions and changes within and between these business domains.

Archimate-PlantUML combines the benefits of PlantUML and ArchiMate for providing a simple way of creating and managing ArchiMate diagrams. The Archimate-PlantUML is a set of macros and other includes written on top of PlantUML Archimate specification, with an aim to simplify the syntax for creating elements and defining relationships.

Getting Started

Include the Archimate.puml file in your .puml or .wsd file:

!includeurl https://raw.githubusercontent.com/plantuml-stdlib/Archimate-PlantUML/master/Archimate.puml

For offline use, download the files and reference them locally:

!include path/to/Archimate.puml

Usage

After you have included Archimate.puml you can use the defined macros for ArchiMate elements.

ArchiMate Elements

The ArchiMate elements are defined in the following pattern:

Category_ElementName(nameOfTheElement, "description")
or
Category_ElementName(nameOfTheElement, "description", true) //To Enable nesting of elements

For example:

To define a Stakeholder element, which is part of Motivation category, the synax will be
```
  Motivation_Stakeholder(StakeholderElement, "Stakeholder Description")
```
Output:

To define a Business Service element,

  Business_Service(BService, "Business Service", true) {
      Application_Service("AppService01", "App Service 01")
      Application_Service("AppService02", "App Service 02")
      Application_Service("AppService03", "App Service 03")
  }

Output:
Business Service

ArchiMate Relationships

The ArchiMate relationships are defined with the following pattern:

Rel_RelationType(fromElement, toElement, "description")

and to define the direction / orientation of the two elements:

Rel_RelationType_Direction(fromElement, toElement, "description")

The RelationTypes supported are:

Access
Aggregation
Assignment
Association
Composition
Flow
Influence
Realization
Serving
Specialization
Triggering

The Directions supported are:

Up
Down
Left
Right

For example:

To denote a composition relationship between the Stakeholder and Business Service defined above, the syntax will be
```
  Rel_Composition(StakeholderElement, BService, "Description for the relationship")
```
Output:

To orient the two elements in top - down position, the syntax will be

  Rel_Composition_Down(StakeholderElement, BService, "Description for the relationship")

Output:
Composition Relationship Down

ArchiMate Groups

Groups in ArchiMate are denoted using the following syntax:

Grouping(nameOfTheGroup, "Group Description"){
    //Define the ArchiMate Elements
}

and to define the direction / orientation of the two elements:

Group(nameOfTheGroup, "Group Description"){
    //Define the ArchiMate Elements
}

For example

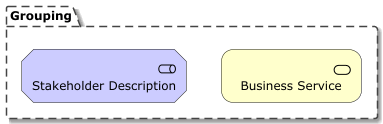

Group Type 1:

  Grouping(Example01, "Group Type 01"){
      Motivation_Stakeholder(StakeholderElement, "Stakeholder Description")
      Business_Service(BService, "Business Service")
  }

Output:

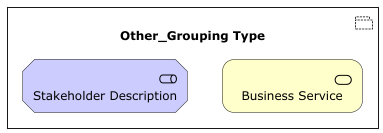

Group Type 1

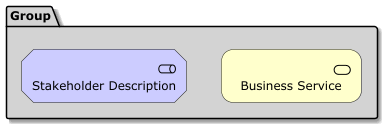

Group Type 2:

  Group(Example01, "Group Type 01"){
      Motivation_Stakeholder(StakeholderElement, "Stakeholder Description")
      Business_Service(BService, "Business Service")
  }

Output:
Group Type 2

Nesting of Components

Nesting allows grouping components hierarchically, improving diagram clarity. There are no limitations on the number of levels of nesting. The implementation allows nesting of any components inside any other components. When nesting, the element will be displayed as a rectangle with the archimate architype on the top right corner.

Nesting can be enabled in the following pattern

Category_ElementName(nameOfTheElement, "description", true) {
    Category_ElementName(uniqueName, "description)
}

For example:

Business_Product("BusProduct01", "Business Product 01", true) {
    Business_Service("BusService01", "Business Service 01")
    Business_Service("BusService02", "Business Service 02")
    Business_Service("BusService03", "Business Service 03")
}

Technology_Device("TechDevice01", "Technology Device 01", true) {
    Technology_Device("TechDevice02", "Technology Device 02")
    Technology_Device("TechnDevice03", "Technology Device 03", true) {
        Technology_Device("TechnDevice04", "Technology Device 04", false)
        Technology_Device("TechnDevice05", "Technology Device 05")
    }
}

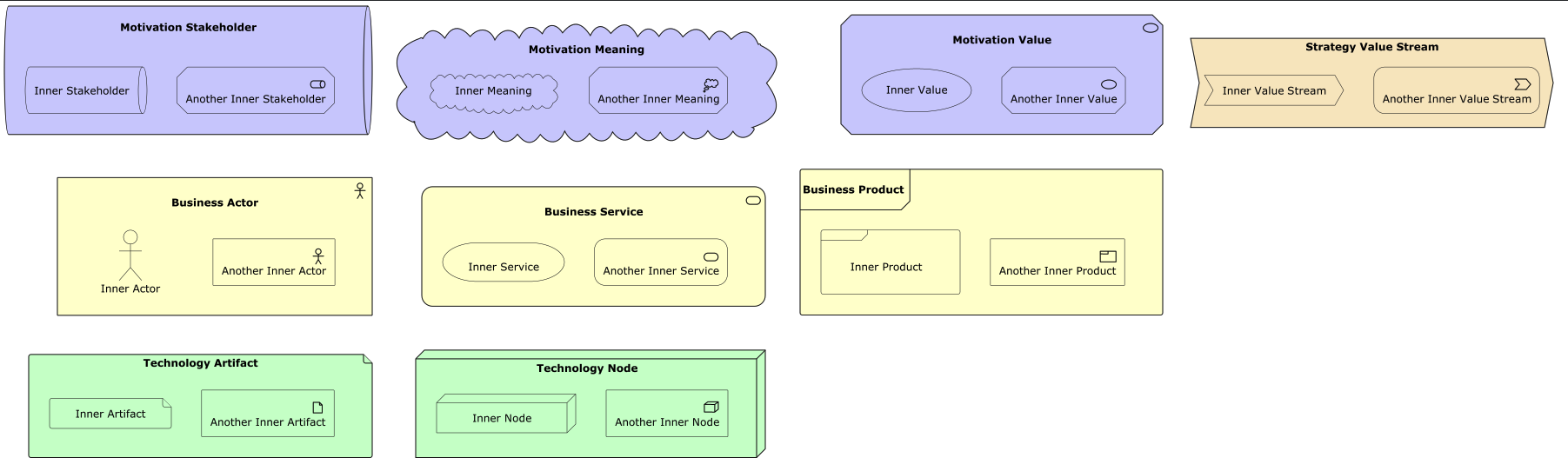

Output: Nesting Example Note that the representation of Technology-Device element changed from a node to rectangle when nesting was enabled.

Theme Support

Theme support is enabled and 5 variations are available. All the themes are based on Archimate specifications.

Theme can be enabled by adding the following line.

!theme <theme-name> from <theme-folder>

// Example
!theme archimate-saturated from https://raw.githubusercontent.com/plantuml-stdlib/Archimate-PlantUML/master/themes

Theme Name	Preview
Default (No line added)
archimate-standard
archimate-alternate
archimate-saturated
archimate-lowsaturation
archimate-handwriting

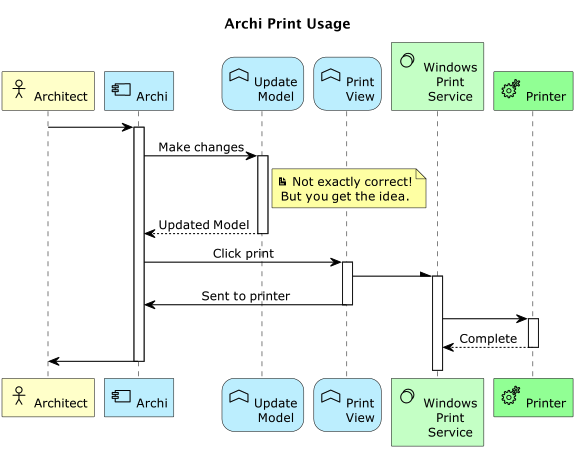

Example

@startuml
!includeurl https://raw.githubusercontent.com/plantuml-stdlib/Archimate-PlantUML/master/Archimate.puml
!theme archimate-standard from https://raw.githubusercontent.com/plantuml-stdlib/Archimate-PlantUML/master/themes

title Archimate Sample - Requirement & Application Services

'Elements'
Motivation_Requirement(ReqPayrollStandard, "Do Payroll with a standard system")
Motivation_Requirement(ReqBudgetPlanning, "Do budget planning within the ERP system")

Application_Service(ASPayroll,"Payroll Service")
Application_Service(ASBudgetPlanning,"Budget Planning Service")
Application_Component(ACSAPFinanceAccRec, "SAP Finance - Accounts Recievables")
Application_Component(ACSAPHR, "SAP Human Resources")
Application_Component(ACSAPFin, "SAP Finance")
Application_Component(ACSAP,"SAP")

'Relationships'
Rel_Realization_Up(ASPayroll, ReqPayrollStandard)
Rel_Realization_Up(ASBudgetPlanning, ReqBudgetPlanning)
Rel_Realization_Up(ACSAPFinanceAccRec, ASBudgetPlanning)
Rel_Realization_Up(ACSAPHR, ASPayroll)

Rel_Composition_Up(ACSAPFin, ACSAPFinanceAccRec)
Rel_Composition_Up(ACSAP, ACSAPHR)
Rel_Composition_Up(ACSAP, ACSAPFin)
@enduml

Output:

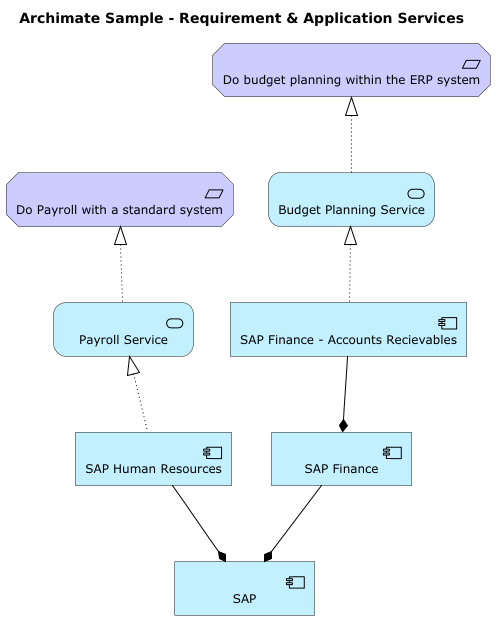

Archimate-PlantUML Sample image - Internet Browser

Contributing

If you have any ideas, open an issue or fork the repository and submit a pull request.

License

This project is licensed under the MIT License - see the LICENSE.md file for details

Acknowledgments

PlantUML Reference Guide - PlantUML Reference Guide
Archimate 3.1 Specification - Archimate Specifications
Plant UML Archimate Specifications - for archimate spec in PlantUML
C4-PlantUML - for inspiration, base structure and scripts idea
